Brand Name : HOTHMI
Model Number : TFT-H035A6QVIST9N40
Place of Origin : dongguan,China
MOQ : 2
Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability : 99999
Delivery Time : 25 days
Product Type : TFT Landscape
Display Content : 320x240
Dimensions (mm) : 76.84x63.84x3.4
Display Size : 3.5"
Viewport Window Size : 3.5"
Effective Size (mm) : 70.08x52.56
3.5 Inch TFT LCD Modules/320 X 240 Dots/Sunlight Readable/TFT-H035A6QVIST9N40
Product parameters
Product Application - Instrumentation
Perspective - Full Perspective
Backlight brightness - 900cd/m2
Connection method PIN number - FPC-40PIN

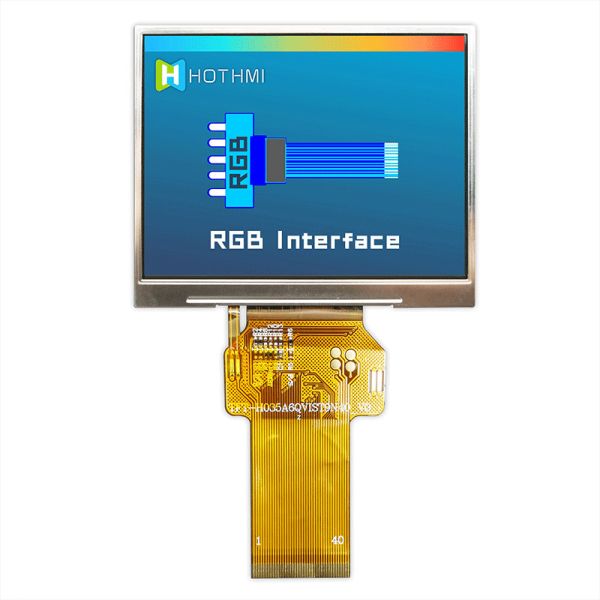

Interface - RGB
Special Instructions - 8/24-bit TTL
Working temperature - 20~70℃
Supply Voltage - 3.3V
Driver IC Model - ST7272A
General Feature:
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H035A6QVIST9N40 | |

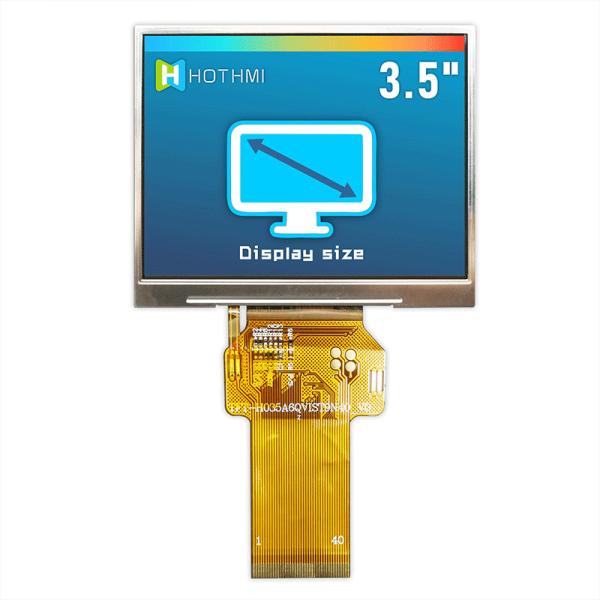

| Diagonal size | 3.5” | Inch |
| Resolution | 320x240 | Dot |
| Dimensions | 76.84X63.84X3.35 | mm |
| Active area (AA) | 70.08X52.56 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |

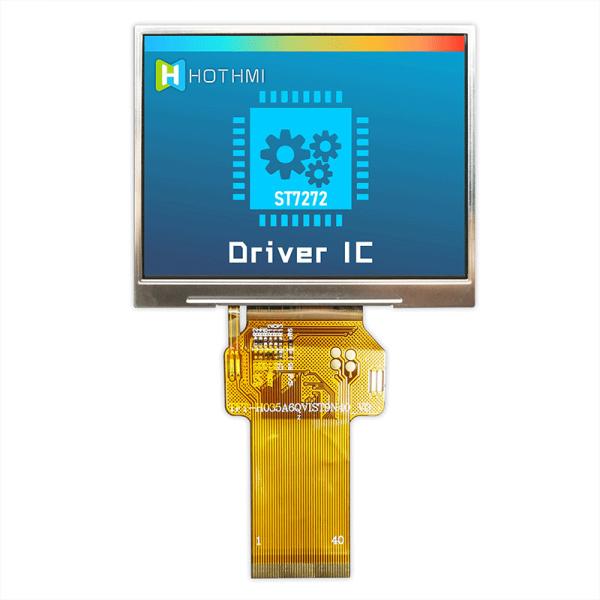

| TFT driver IC | ST7272 | |

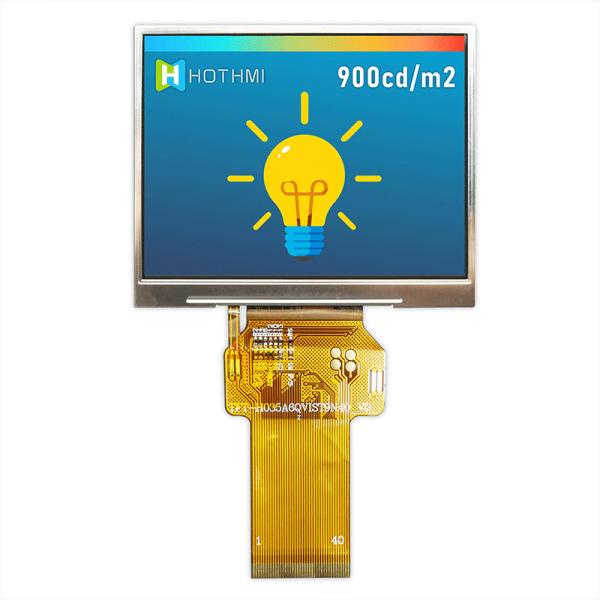

| Brightness | 900 | cd/m2 |

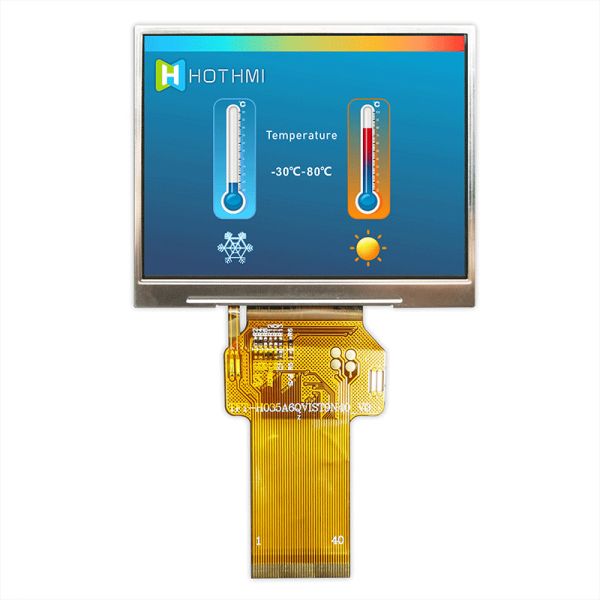

| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -40~85℃ | ℃ |










|
|
3.5" TFT LCD Display - High Brightness With 320x240 Resolution Images |
